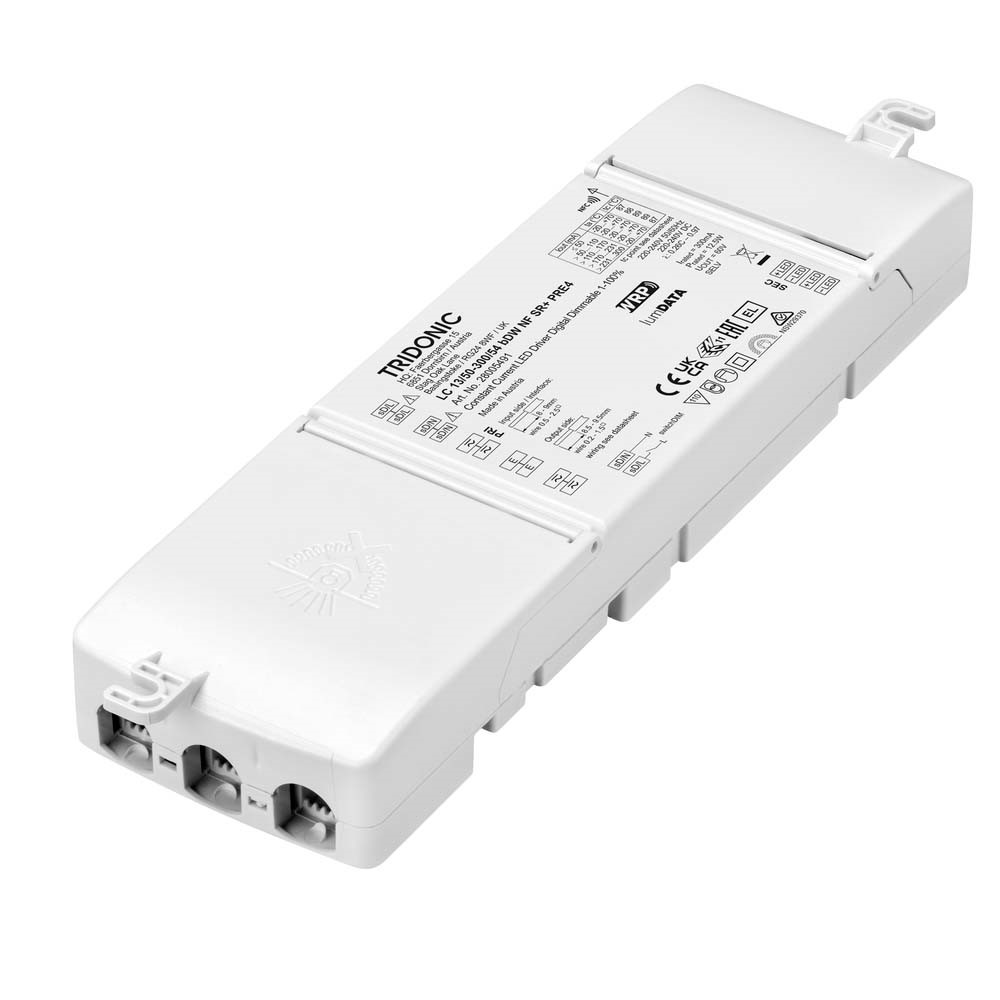

Dimmable constant current basicDIM Wireless LED driver with strain-relief for wireless communication (Casambi) and LINECT housing. Can be used in new installations or for refurbishment of existing switchable installations to wireless controlled smart lighting. The optional Linect housing for sheathed cables enables quick installation without the need for trained specialists. The integration of lumDATA and Lifetime Indicator gives you important insights into your drivers, enabling you to make data driven decisions.
Features
- Can be integrated in Casambi systems (Casambi Ready). Forms automatically a wireless communication network with up to 250 nodes.
- Dimming range: 1 – 100 %
- Fulfills DALI-2 parts: 105 (DALI firmware update), 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
- fade2zero function gently dims the lighting before switching off
- Adjustable output current in 1-mA-steps via near field communication (NFC)
- Constant light output function (eCLO)
- A part of WRP – Wireless Reference Platform Partner Program
Benefits
- Housing with an improved strain-relief and LINECT-interface connection. LINECT is a standardized fast connect system for lighting installations with isolated plug-in connectors available in 3 and 5 pol variants. Cables can be prepared during the sub-ceiling construction.
- NFC interface for fast and contactless programing and data access
- lumDATA and Lifetime Indicator, accessible through DALI or NFC interfaces, which also facilitate programming
- Certified according to C2C, featuring a new housing material Makrolon® RE
Interfaces
- Terminal blocks: 0/45° push terminals
- Near field communication (NFC). Support for NFC multiple programming (for all drivers in a full carton box)
Technical details
- Max. output power 43.5 W
- Lifetime up to 100,000 h and 5-year guarantee
